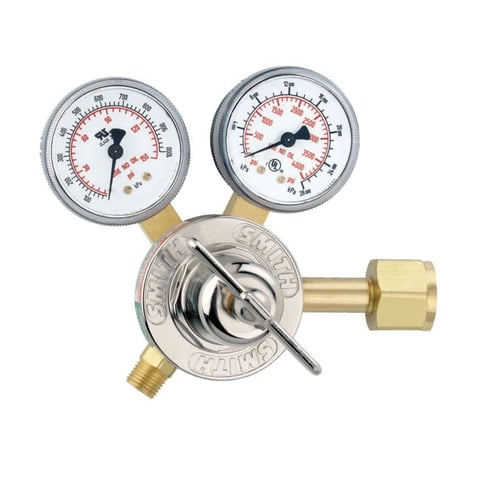

Medium-Duty Flowmeter Regulators, Oxygen, CGA 540; 3,000 psig inlet


Product Description

Rugged medium-duty industrial-grade regulators are extremely durable and contain Smith’s exclusive Sure Seat™ filtered seat technology for extended seat and regulator life. Flow Gauge and Flowmeter Regulators. Use for shielding gas with argon or CO2 in MIG and TIG welding. Flow gauge regulators are for accurate measurement of gas flow. Flowmeter regulators incorporate flowmeter and regulator into one compact unit. Dual flowmeter regulator is ideal for back purge TIG welding. Provide efficient and accurate regulation. Filtered seat prevents contamination from entering the seating area reducing repair costs and down-time.

Specifications

Body Diam 2 in
Gas Type Oxygen
Gauge Size 2 in
Inlet Connection CGA 540; CGA540
Inlet Pressure [Max] 3,000 psig
Outlet Connection 9/16-18 RH B
Outlet Pressure [Max] 1000 psi
Overall Length [Nom] 4 3/4 in
Packing Type Clamshell
Series Series 30â„¢
Type Medium Duty Regulator
Wt. 2.84 lb
Prop65 WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
